What is the Feature of our SR-500?
|Name||multi coin acceptor|
|accept coin number||the same time accept 1-8 different coin|
|The diameter of the coin||15mm~29mm|
|The thickness of the coin||1.2mm~3mm|
|Warranty period||1 year|

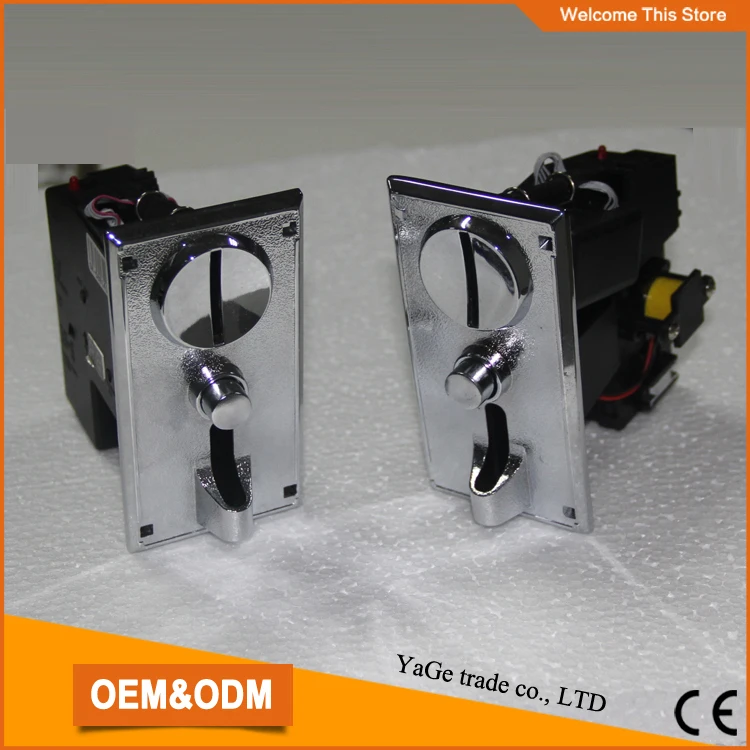

wholesale price!!! 2015 advanced Multi Electronic Cpu Coin acceptor
1. intelligent CPU control, accurate score, coin recognition accuracy is very high. The speed of recognition is ≤0.6 Seconds.
2. do not need to through the computer, automatic setting program. Intelligent anti shock and electromagnetic interference, automatic fault detection.
3.Can also receive eight different COINS, can set their own pulse ratio, support multiple currency only outputs a pulse.
4 .can increase the bans accepting coins function: connect the black line, by the /Hi (0-3V), /Low (3.5-5.0V) is prohibited.
connect the red line, by the /Hi (2-5V), /Low (1.6V) is prohibited.
5. built-in test coins the size of the program.
6 .turning device, completely solve the card currency.
7 .for the coin recognition signal output normally open and normally closed switch
8.I allow the connection time timing controller 8.
9 .able to accept all the coins and tokens in the world.
10. easy installation.
11.One year quality guarantee
The Wiring instructions:
The red line—DC12V
The white line—COIN
The black line—GND
The frustrated —COUNTER(A digital watch)
1. press (ADD) and (MINUS) at the same time, let go of the button a few seconds later, the digital screen displays (A).
2. Press the (SET) key a few seconds and then let go,digital display screen displays (E). Use (ADD) or (MINUS) to set the number of COINS. After the completion of the setting, press and hold (SET) key a few seconds.
3. the digital screen displays (H1).Use (ADD) or (MINUS) key to set the number of sampling. After the completion of the setting, press and hold (SET) key a few seconds. ##Sampling number of Each currency no more than 30.
4. After the completion of the setting, press and hold (SET) key after a few seconds, Digital display, display (P1). Use (ADD) or (MINUS) key to set the pulse number. After the completion of the setting, press and hold (SET) key a few seconds. ##Frequency of currency output pulse number no more that 99.
5.The Digital screen displays (F1),Use (ADD) or (MINUS) key to set the precision of coins (generally set 5-10).After the completion of the setting, press (SET) key a few seconds. ##In general,5 ~ 10 shall prevail,the loosest for 30. ##if the currency are too similar,recommend the precision of adjustment less than 5.
6.now,the setting of first currency has been accomplished. repeat The third step to the fifth step operation in accordance the value of currency until all coins are set. After setting, the digital screen displays (A) again.
7.Press and hold (SET) key after a few seconds, Digital screen display (E).then Reboot shall complete all the setting.
sampling after accomplish setting program. Please select more than 15 coins. Sampling will affect the coin recognition rate.
Sampling procedures :
1. After press and hold (SET) key after a few seconds, Digital screen displays (A1).
2. then insert a coin to perform the first sample coins,after that the screen will display (A1) again.
##the screen will display the quantity of coins while sampling.
3. press and hold (SET) key after a few seconds,Digital screen displays (A2),which shows that the second sampling. Repeat the above steps until all the selected currency sampling completed.
4. then Reboot shall complete all the setting.or you can just press the (SET) key a few seconds.
For example: if u already set up four kinds of coins,then the fifth and sixth coins can be sampled by pressing (SET) or reboot the power.
5.After all sampling, the system will reboot and everything will be all set.
AP FORM(The numerical adjustment):
##Use this mode to control the ratio of the output pulse.
1press(ADD) and (SET) at the same time,entry AP Mode.
2.the screen display(AP), use (ADD) or (MINUS) key to set the numerical. And then press (SET) for a few seconds. When the internal signal (reference variable P value) reaches the set value,the coin will generate an external pulse output
3.The preset value of AP is1.
Restore the factory Settings:
1. Turn the power off.
2. Press and hold (SET) and (ADD).
3. turn on the power supply
4. let go of the (SET) and (ADD) when Hear Beeps
Our coin acceptor widely used in coin kiosk, car washing machine, TV, massage chair, cloth dryer, cyber coffee, Laundromat, laundry,computer ,amusement machine , arcade machine etc .
1. We will change a good one to you if there’s any problem within 3 months.
2. We will replace the broken spare parts for our customer for free in one year warranty period.
3. After 1 year warranty, we can also provide repair service, but customer need to pay for the repair cost.
We have many kind of game board and accessory for arcade machine.You can build or replace your machine with convenience way.
Our accessory product include:Joystick,Push Button,Microswitch,Speaker,Cooler Fans,Coin acceptor,Power supply,Cable Holder,Jamma Harness,PCB Feet,Track Ball,Locks,Coin Door,Converter Board and so on.
Our game board include:1940 In One,1078 In One,1072 In One,450 In One,200 In One,SNK 150 In One,138 In One,120 In One,111 In One,100 In One,48 In One,45 In One,38 In One,32 In One….
Happy Fish II-302 In one,Happy Fish I-195 In One,Blue Elf II-310 In One,Blue Elf I-108 In One,Classic 60 In One…….
Our casino Game PCB as:Red Boad Mega 7 In One,15 In One,1 In One,Coolair,Coofire,Hot Spot and so on…
Note:As every country have different policy for import tax and our price is not include import tax. Please check your local tax before buying.
